Automatic Screw Counting Packing Machine for Furniture Fittings and Hardware Fasteners
-
-
-
-
-
Application
This furniture fittings counting packing machine is designed for screws, bolts, nuts, washers, nails, hinges, connectors, dowels, plastic fittings and other small hardware parts. It counts the preset quantity before packing the components into sealed bags.
Package Type
Suitable for pillow bags and center back seal bags formed directly from roll film. Different bag sizes can match individual fasteners, furniture hardware sets and mixed component packs according to the machine configuration.
Workflow
1. Hardware Feeding, 2. Vibratory Sorting, 3. Component Counting, 4. Counted Product Transfer, 5. Film Feeding, 6. Bag Forming, 7. Product Filling, 8. Vertical Sealing, 9. Horizontal Sealing, 10. Bag Cutting, 11. Finished Bag Output
Features
1. Automatic counting system controls the preset quantity of screws and hardware parts for each bag.

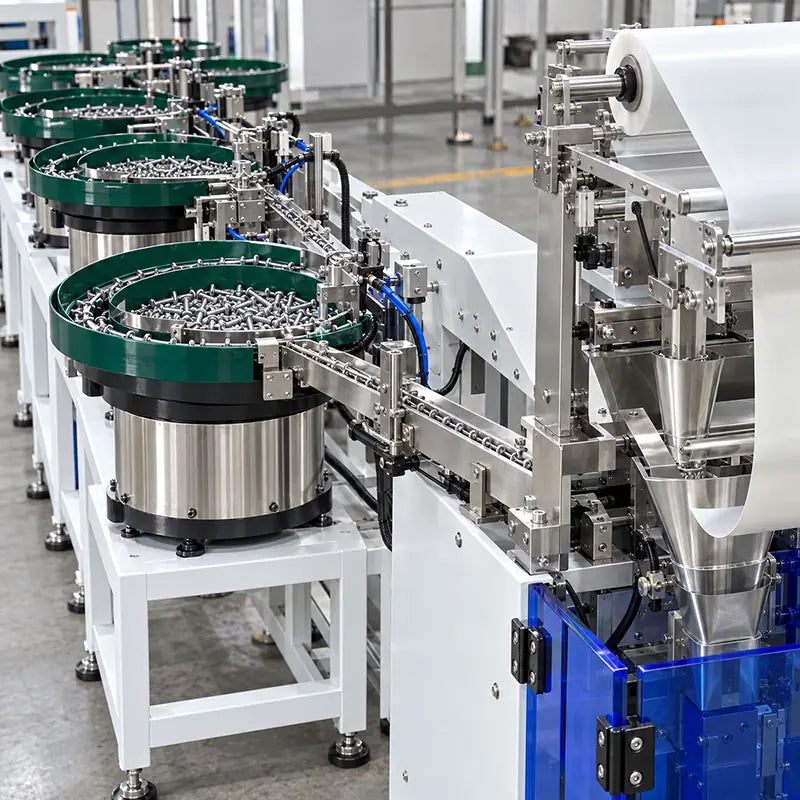

2. Vibratory feeding separates and arranges small components before counting.

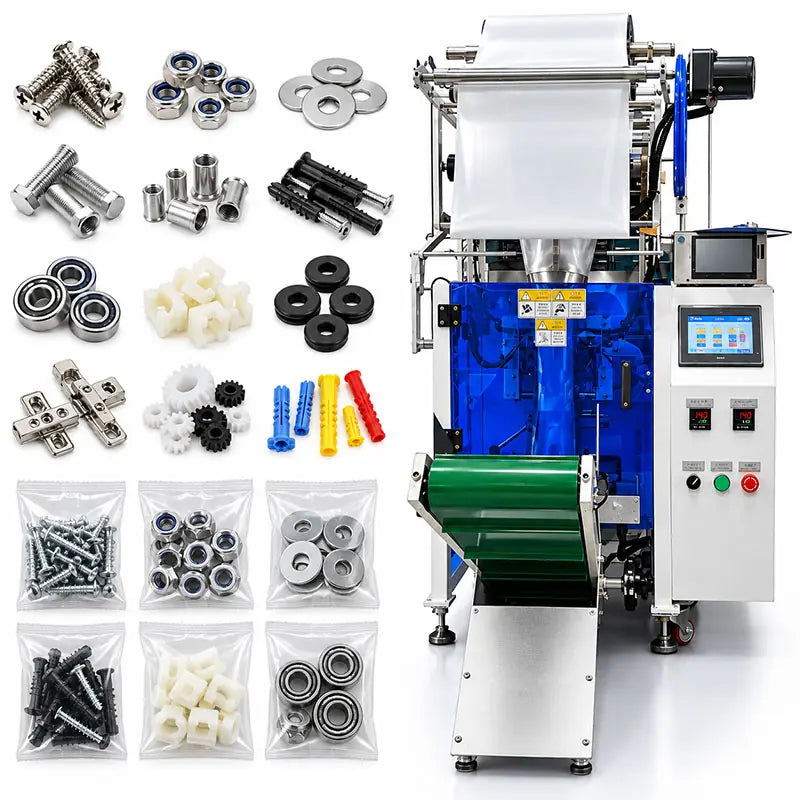

3. Suitable for screws, bolts, nuts, washers, nails, furniture connectors, dowels and similar fittings.
4. Counting quantity can be adjusted for different furniture hardware kits.
5. Customized feeding tracks can match different fastener shapes and dimensions.

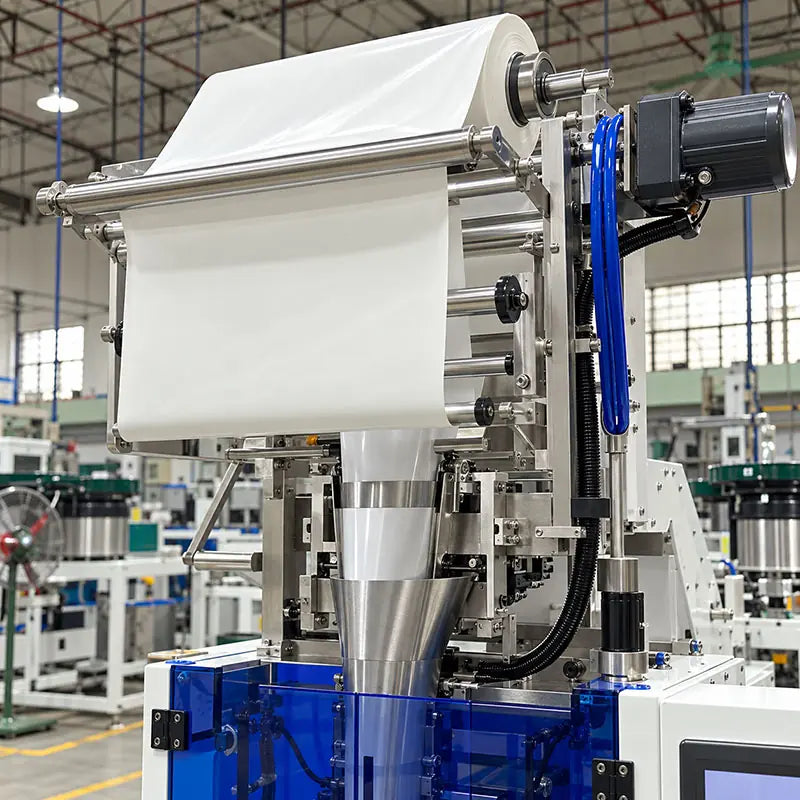

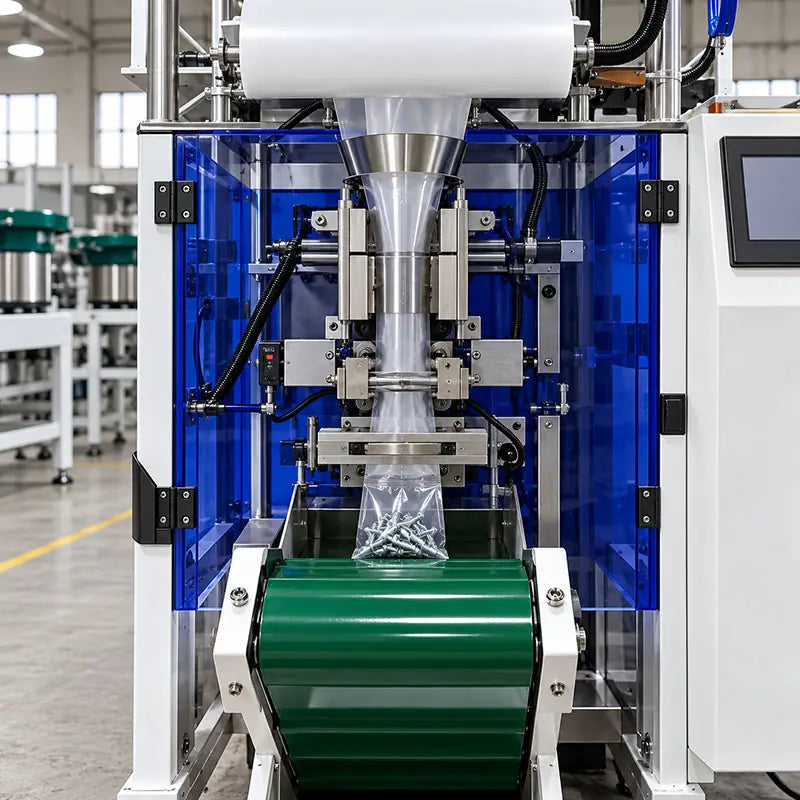

6. Vertical packing unit forms, fills, seals and cuts bags directly from roll film.
7. Supports single-component packing and mixed hardware sets when configured with multiple feeding channels.
8. Bag length and packing settings can be adjusted for different component quantities and sizes.

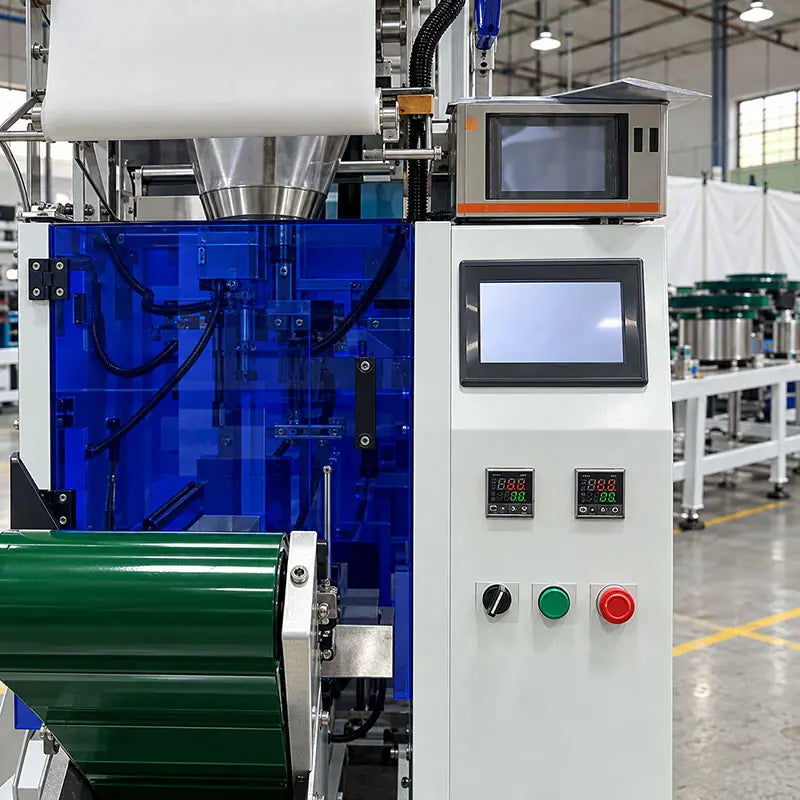

9. PLC and touchscreen control counting and packing parameters.
Technical Parameters
| Model | BP-240C | BP-420C |
|---|---|---|
| Packing Size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 50-200mm |
| Max Film Width | 300mm | 420mm |
| Packing Material | PA/PE, PP/CPP, PET/PE | |
| Counting Capacity | 1-20 pcs/bag; 1-40 types/bag | |
| Packing Speed | 10-60 bags/min | |
| Power | AC220V/50-60Hz/2kW | |
| Machine Size | L*W*H: (n/2*600+2200mm)*1500*1650mm, n = the Qty of vibration bowl | |
FAQ
What furniture fittings can this machine count and pack?
It can handle screws, bolts, nuts, washers, nails, dowels, connectors, hinge accessories and other small countable hardware parts.
Can the machine pack several different parts in one bag?
Yes. A machine configured with multiple feeding and counting channels can combine different hardware components into one kit.
Can I change the number of screws in each bag?
Yes. Operators can set the required quantity according to the packing specification.
What type of bags does the machine use?
The packing unit uses roll film to form pillow bags or center back seal bags during production.
Does the machine work with different screw sizes?
Yes. The feeding track and counting settings can match different fastener sizes, but the feeding system should be configured around the actual product samples.
What is the maximum packing speed?
The machine runs at up to 50 bags/min. Actual output depends on the number of components per bag, product dimensions and feeding conditions.
